FOR SALE AT RBS SUPERCHARGERS: Used Vertex Dual Mag Assm. Hemi

Discussion in 'Noonan Classifieds' started by RBS, Dec 11, 2015.

  1. RBS

    RBS Authorized Merchant

    Joined:
    May 6, 2004
    Messages:
    1,095
    Likes Received:
    0

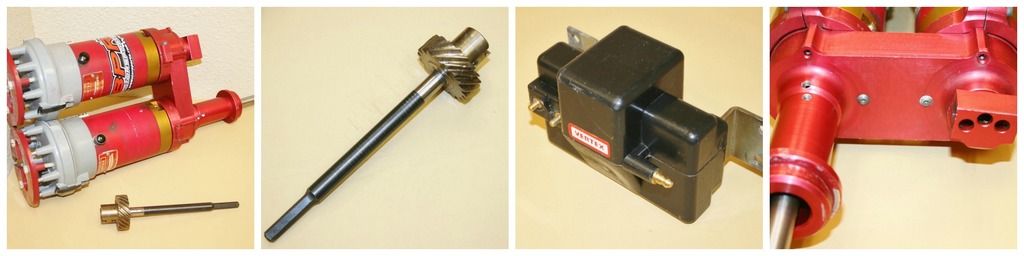

    For the hot rodder that likes the looks of two big magnetos on their dual plug blown Hemi hot rod here is just the set up. You get a billet alum. dual mag drive that includes a oil pump drive shaft that uses the industry standard 5/16" hex and the bronze gear is in good shape. Then there is two billet alum. mag clamps to clamp the magnetos to the mag drive as well as two Vertex OXC magnetos that have just been checked out at FIE. Each magneto comes with a run report and #1 puts out 1.22, #2 1.24 amps but if tested like a MSD mag these put out 2.7 amps. Magnetos include dual Vertex OXC external coils, is set up to use a MSD 5.00" mag cap for better spark distribution and is more reasonable to replace when the racer needs. Magneto is simple to use with minimal wiring and looks like on the bottom of the mag drive there is possibly a option to run a mechanical tach. From block surface of the mag drive to the top of the cap it is 15.250" tall so this dual mag set up will make a serious statement on your hot rod. Not sure of the manufacture of the mag drive but thinking it is Vertex. For more pictures visit www.rbssuperchargers.com #7010-0041 $1,400.00
    [​IMG]
