FOR SALE AT RBS SUPERCHARGERS: Used Polished Enderle Buzzard Catcher Injector Assm. W/Inj. Spacer

Discussion in 'Noonan Classifieds' started by RBS, Nov 11, 2015.

  1. RBS

    RBS Authorized Merchant

    Joined:
    May 6, 2004
    Messages:
    1,095
    Likes Received:
    0

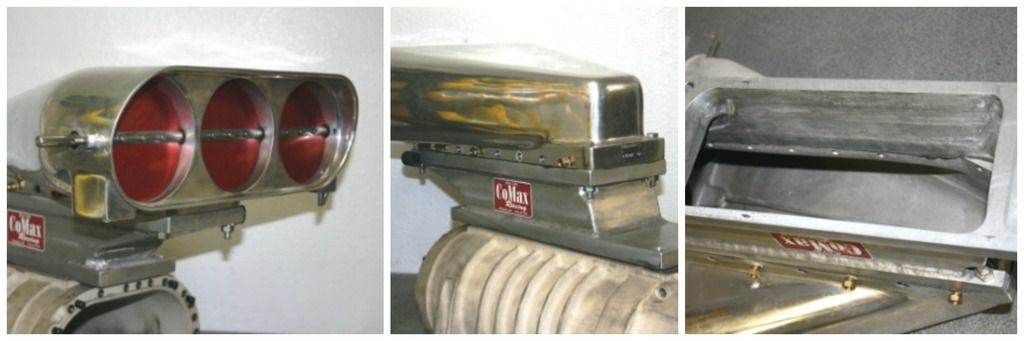

    The injector is sold as seen in the pictures with a polished alum. housing, stainless steel butterfly shaft, throttle stops and arms, and three 5.00" dia. butterflies that are red anodized. The injector housing is machined for sixteen 1/8" nozzle bodies, barrel valve mounting location as well as distribution block location. Butterfly shaft dia. is .440" and from mounting surface to top of injector is 6.375". The opening in the injector is 4.375"x15.00" and it mounts on the industry standard 15.310" bolt pattern common on 10-71 thru 14-71 blowers. Width of the injector is 21.00" wide and injector weights twenty four pounds as seen in the pictures with the injector spacer. Injector can be made complete at an additional cost if the racer chooses for there particular application. Injector will need dist. block, fuel lines, idle and pump saver check valve, barrel valve, nozzle jets and bypass pills to be complete. Square inch area of injector is 59.00". Now for the injector spacer it is a fabricated alum. spacer that is 4.00" tall and moves the injector forward 4.00". Spacer has a top opening is 15.00" x 4.50" with the bottom opening being 11.00" x 4.50". Injector bolt pattern is 15.310" between bolt centers on the top as well as on the bottom of the spacer. BLOWER IN PICTURES IS USED FOR PICTURE PURPOSES ONLY. For more pictures visit www.rbssuperchargers.com part number #7003-0008A. Have any questions please call at 530 274-3835.


    [​IMG]
