FOR SALE AT RBS SUPERCHARGERS: Used Littlefield LB-20 Hi Helix Blower 8-71

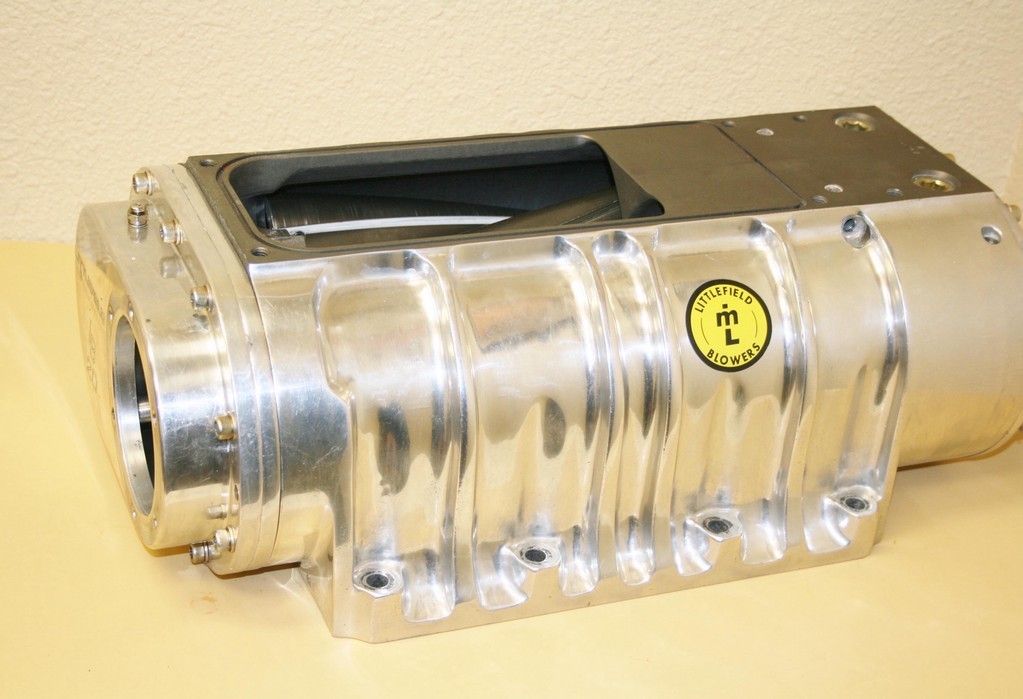

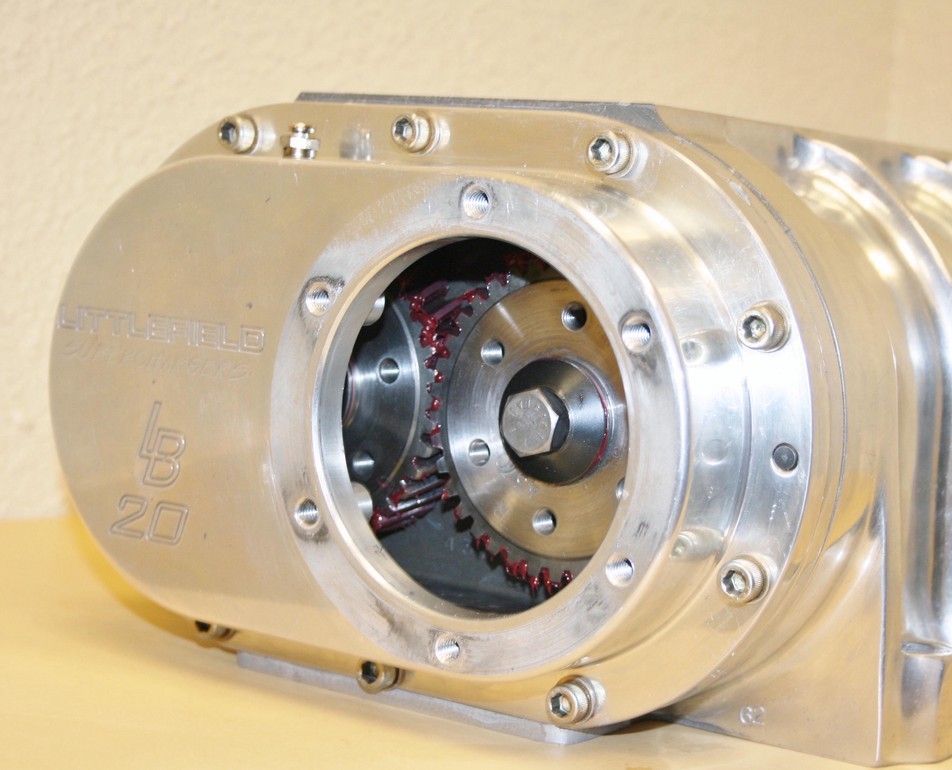

Used 8-71 Littlefield hi helix LB-20. This supercharger uses billet inset alum. bearing plates and front cover to insure maximum stability and strength with the benefit of no dowel pins to locate the bearing plates to maintain consistency between rebuilds. This supercharger is designed for all out race applications and will provide maximum boost to your engine with the rotors set back in the case to use the benefit of the front loading bearing plate allowing a more efficient way for the air to come into the supercharger. The case is polished alum. and the rotors ride in precision hi speed bearings that are timed by steel gears with dual lipped Teflon seals. Rotors are 120 degree billet hi helix with fresh Teflon and nylatron to seal the rotors to the case as well as to one another with nylon plugs installed into the rotor ends to provide more boost into the engine. The case is machined to use an O-ring where the injector mates and all bearing plates are machined to use an O-ring for a superior seal. The blower is drilled four spots in the rear for fuel with the top opening measuring 9.125" x 4.50" to provide maximum boost. This blower can be moved back on the blower manifold or run in the stock location. Blower case will accept 13.250" and 15.250" on center injector bolt patterns so injector choices are pretty much limitless. Blower weights 80 lbs. and is 22" from end to end. For more pictures visit www.rbssuperchargers.com. Part number #7006-0010. Any questions please call at (530) 274-3835.
