FOR SALE AT RBS SUPERCHARGERS: Used Hogan Fathead A-Fuel .500" Short Deck Intake Mani

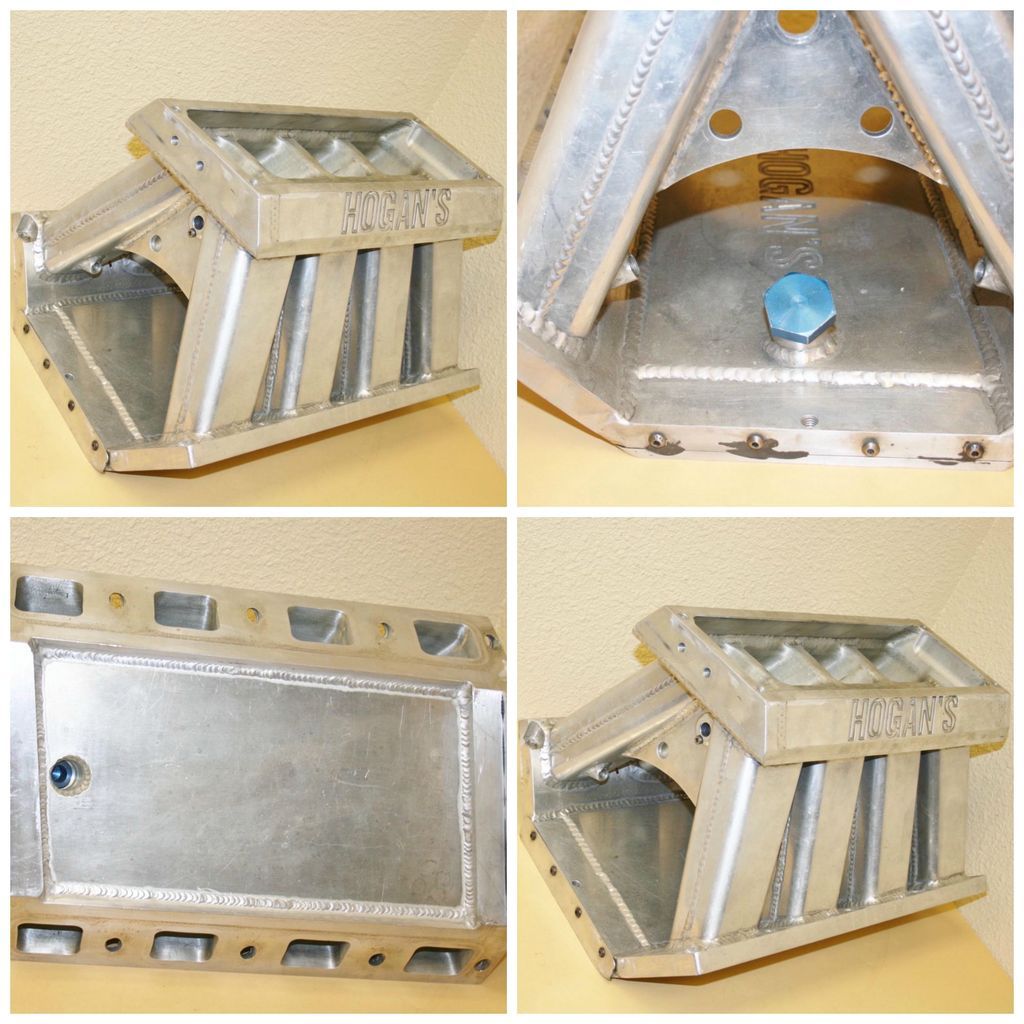

For the racer wanting to put together a popping, snapping, banging A-fuel motor here is a chance to get one of the main components of the puzzle. Hogan builds a top notch quality product and this manifold is a shining example of there workmanship. Fully tig welded on all mating surfaces with .250" gussets between the plenum and intake runners and no signs of any repairs. Ports are 2.125" x 2.00" and will work with BAE/AJ Fat head/Muscle head motor combinations. Manifold accepts all injectors with a 15.250" on center bolt pattern such as Enderle, Automan or many others and each port has a 1/8" pipe bung for one fuel nozzle body per port. In the rear there is a -12 ORB plug for an oil fill and manifold from deck surface to injector surface is 11.750" tall. Manifold is for a .500" short deck set up. For more pictures visit www.rbssuperchargers.com #7005-0007, have questions feel free to give us a call at 530 274-3835.
