Blower dyno testing.....

Discussion in 'PSI Superchargers Tech Questions' started by ZERO260IN1, Dec 20, 2009.

  1. ZERO260IN1

    ZERO260IN1 Member

    Joined:
    Nov 22, 2006
    Messages:
    103
    Likes Received:
    0
    #1
  2. ITS IN MY BLOOD

    Joined:
    Dec 2, 2004
    Messages:
    1,093
    Likes Received:
    2
    the numbers in the 3,000 range are CFM
    the largest #`s are the Rpm`s the blower is spinning
    and the smaller two digit #`s is the boost it produced,..

    #2
  3. LeWhite

    LeWhite BB/Alt

    Joined:
    Jan 23, 2008
    Messages:
    167
    Likes Received:
    0
    What do the column and rows mean

    #3
  4. Micetich

    Micetich Member

    Joined:
    Oct 5, 2006
    Messages:
    76
    Likes Received:
    0
    I read it as : 3 blower being compared. 1st column is rotor rpm/ psi @ 3450 cfm, 2nd column is rotor rpm/ psi @ 3525 cfm, 3rd column rotor rpm/psi @ 3600 cfm. Last two columns are cfm/psi at 12,000 and 11,800 rpm. Don't know why these numbers are picked as standards but I'm sure they have a good reason.

    #4
  5. craig moss

    craig moss Member

    Joined:
    Sep 29, 2006
    Messages:
    574
    Likes Received:
    6
    I think they are comparing an old LF design ,the newer LF LB 20and the DMPE M-4 blower

    #5
  6. ZERO260IN1

    ZERO260IN1 Member

    Joined:
    Nov 22, 2006
    Messages:
    103
    Likes Received:
    0
    LAFF..

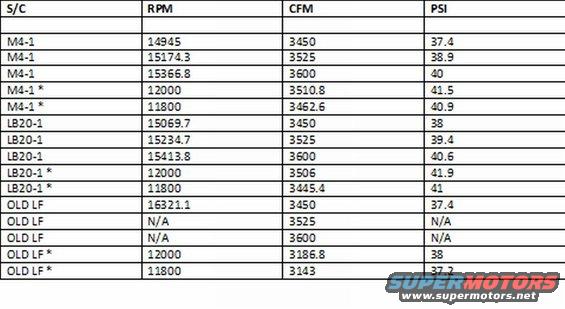

    Well, stuff like this drives me nuts. If thats the case I think they meant to say it like this. :confused:


    [​IMG]

    #6
  7. ZERO260IN1

    ZERO260IN1 Member

    Joined:
    Nov 22, 2006
    Messages:
    103
    Likes Received:
    0
    And if your taking the time to dyno, why not log inlet temps? That would only take a few extra minutes to set up. You have boost and rpm.. if a guy had temps you could draw some conclusions. WIthout temps this info is useless no?

    #7
  8. ZERO260IN1

    ZERO260IN1 Member

    Joined:
    Nov 22, 2006
    Messages:
    103
    Likes Received:
    0
    You know what.....I think Im wasting everyones time. When I take another look at the 12,000 and 11800 numbers, which i thought were simply rotor rpm and cfm for a bench mark, the cfm stats dont make sense with the original stats. ie.. the m4blower makes more cfm at 12,000rpm then at 14,945 . :confused:



    I'll stick to drinking my cold beer, and just try to ignore shit I dont get.


    merry christmas!!!

    #8
    Last edited: Dec 21, 2009
  9. Micetich

    Micetich Member

    Joined:
    Oct 5, 2006
    Messages:
    76
    Likes Received:
    0
    Probably have to give Littlefield a call. Too many unknowns. Is Force using the same setup as his fuel blowers? If temp is not figured in to the outlet then the cfm would have to be measured at the inlet. Are they using different restrictions for every engine or just compared at a standard area. What hat is on the blower? There is no way these are real world numbers but just a way to compare different blowers. If the big numbers are rotor speeds, does anyone else think that it is very high. Most probably are never in that high of overdrive.

    #9
  10. LeWhite

    LeWhite BB/Alt

    Joined:
    Jan 23, 2008
    Messages:
    167
    Likes Received:
    0
    Called LF already... They don't know....Guess the answer is on the head of a toothpick

    #10
  11. ZERO260IN1

    ZERO260IN1 Member

    Joined:
    Nov 22, 2006
    Messages:
    103
    Likes Received:
    0
    :D


    Yrs ago, when I was in the market for upgrading my 14, talking with Mert.. I said I have to step it up to keep up with my buddies running the turbo's. I said they were making "x" amount of hp and on low octane, and I need to step it up!! in a nutshell he laughed at me, and said the "claims" were all exaggerated and total bs. Treated me like I didnt know "SHIT" :cool:



    Now in 2009, I would think hes singing a different tune. :p

    #11
  12. Bottlefed

    Bottlefed New to Blowers

    Joined:
    Feb 20, 2008
    Messages:
    375
    Likes Received:
    0
    While I think that blower dynos are great as an in house tool for blower development. The large number of variables, that have to be addressed to get a real apples to apples comparison, would probably mean that it would just be too easy to sway the results however you wanted, to make a brand comparison by a manufacturer about as valid as CFM numbers on heads.

    #12
  13. Iron Mike

    Iron Mike New Member

    Joined:
    Nov 26, 2008
    Messages:
    123
    Likes Received:
    0
    So LF don't even know or understand what they have on their own web page???

    #13
  14. Big Sexy

    Big Sexy Member

    Joined:
    Jan 8, 2006
    Messages:
    150
    Likes Received:
    0

    I spoke to the "Toothpick" yesterday. He said, something to the effect, boost is subjective. Charts are subjective. Comparisons need a baseline.

    I got lost, but it is always fun talking to him.

    #14
